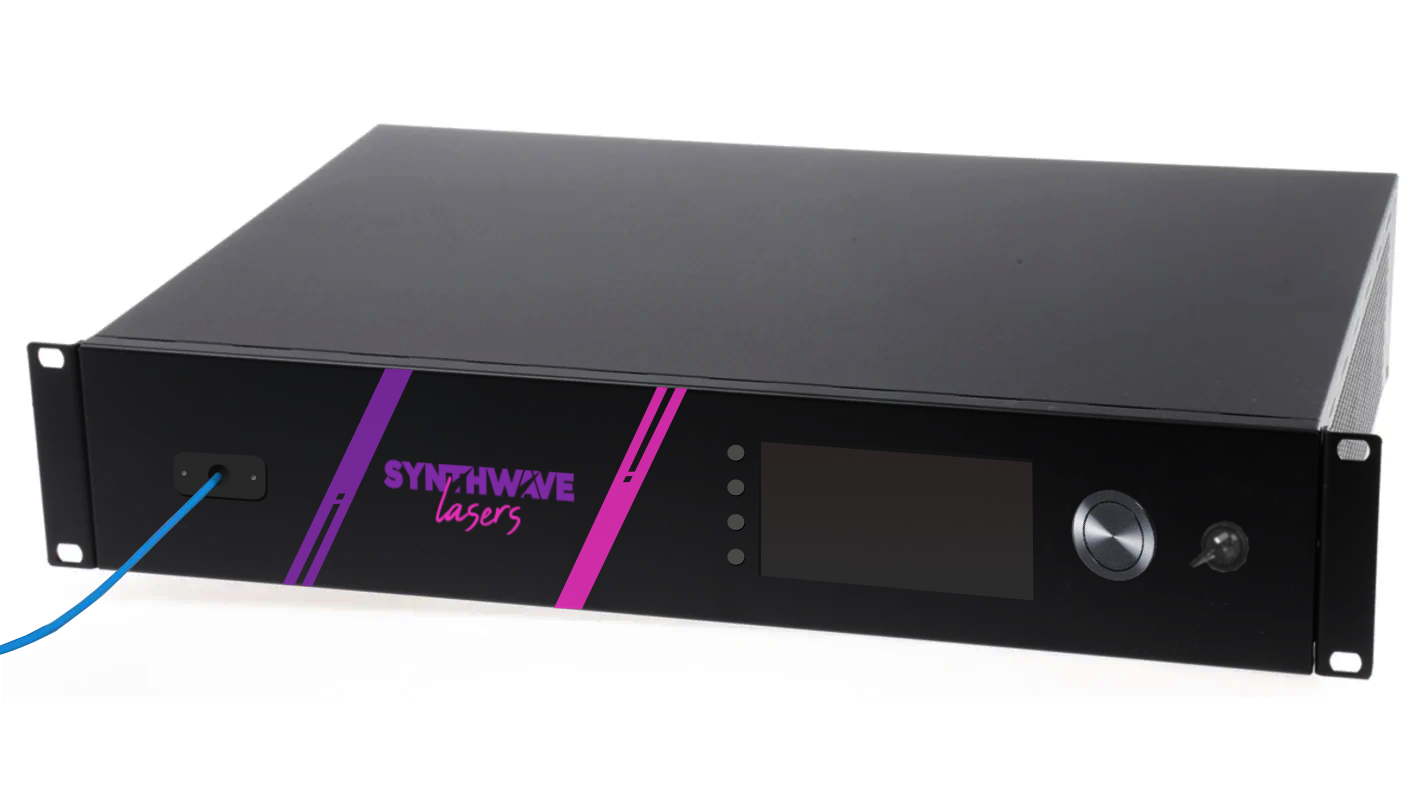

Neon - The GHz laser pulse syntesizer

Neon is an innovative laser source which allows the tunability of optical output parameters such as repetition rate, pulse duration and burst mode, even during operation.

It is a fully fiber-coupled laser source that leverages robust proven radio-frequency and optical components to synthesize optical pulses for demanding 24/7 operations.

The unmatched versatility allows on-the-fly optimizations of processes and applications.

Native synchronization of pulse emissions is achieved without feedback loop electronics.

Optical amplifiers can be added to increase the average power

Available at 920 nm, 1 µm, 1.5 µm and 2 µm

Applications

Astrocombs
Material processing
Photo injection
Non-destructive testing
Optical communication
Quantum optics
THz generation

Specifications

Repetition rate
9 - 18 GHz (standard)
1 - 18 GHz (extended range)
Tunable or factory-set

Pulse duration
1 - 10 ps
Chirped or compressed
Post-compression available at 1 µm

Burst mode
10 - 500 pulses

Average power
> 100 mW (1 µm, 1.5 µm, 2 µm)
> 5 mW (920 nm)

High-power option for all wavelengths
> 60 W at 1 µm

Optical output port
FC/APC or free-space depending on configuration

Synchronization
SMA input ports
10 MHz, fundamental and/or sub-harmonics

Power consumption:
< 100 W (for standard output power)

Cooling: Actively air-cooled

Warmup time: < 10 s

Interface: USB

Dimension: 3U (may vary with options)

Weight: 12 kg (may vary with options)
